Projection can be used for nesting pieces on material (interactive nesting) or for sorting of cut pieces.
Features:

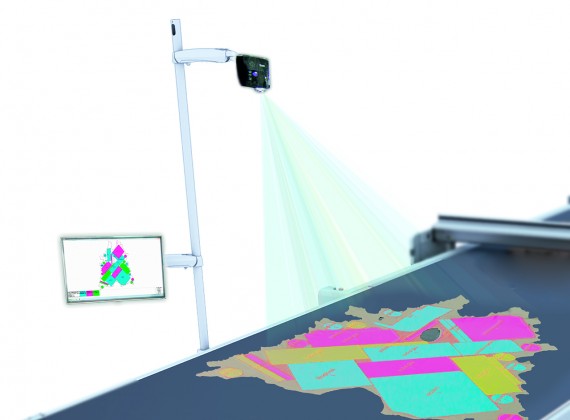

- Connection to projector

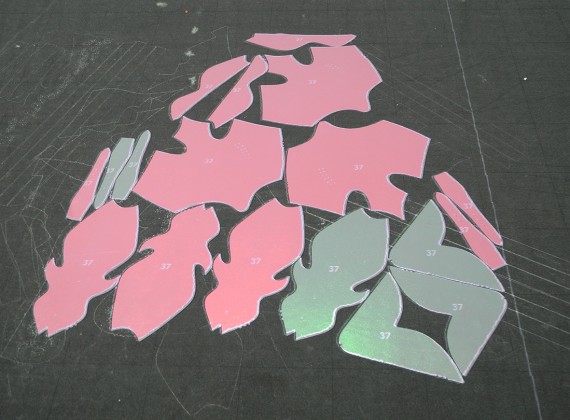

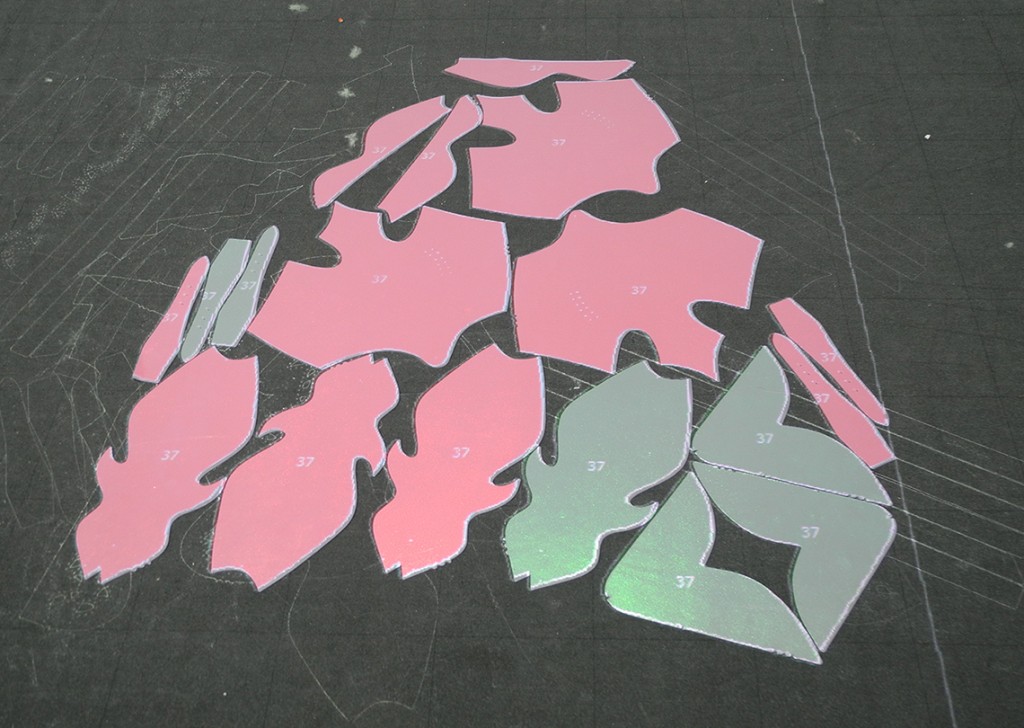

- Projection of pieces on material in real size and position
- Possibility of precise nesting of pieces with respecting of defects and quality areas on material
- User settings of piece colors for a better recognition on the material
Details:

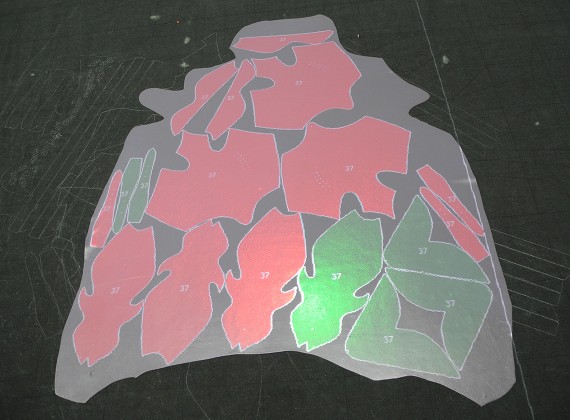

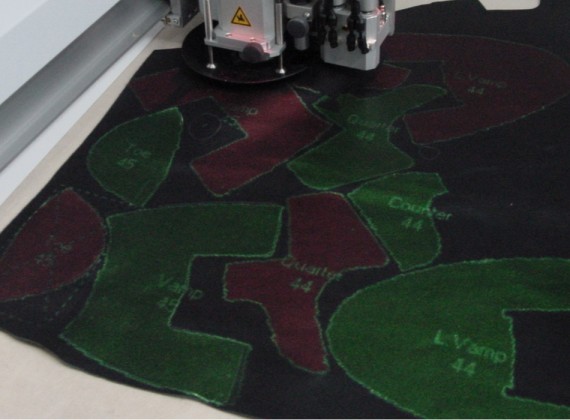

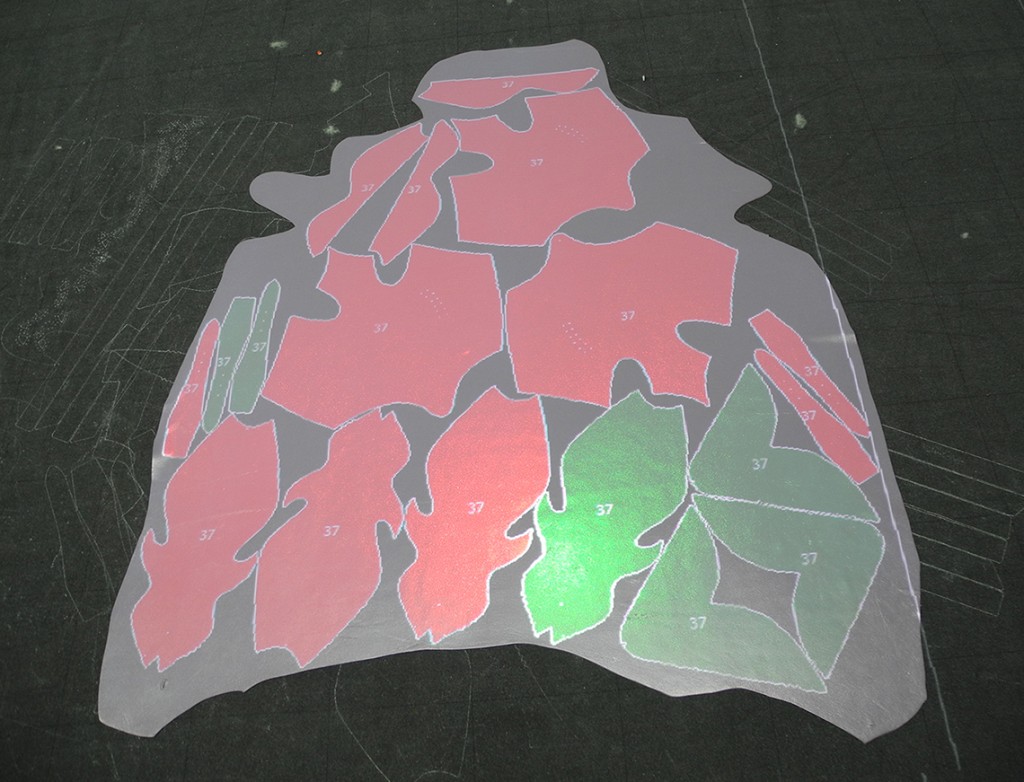

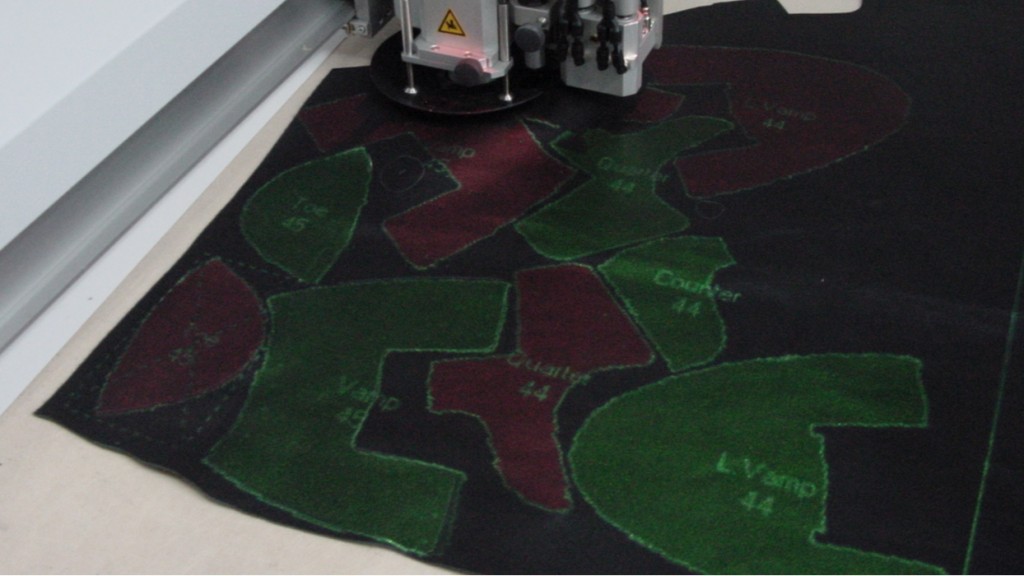

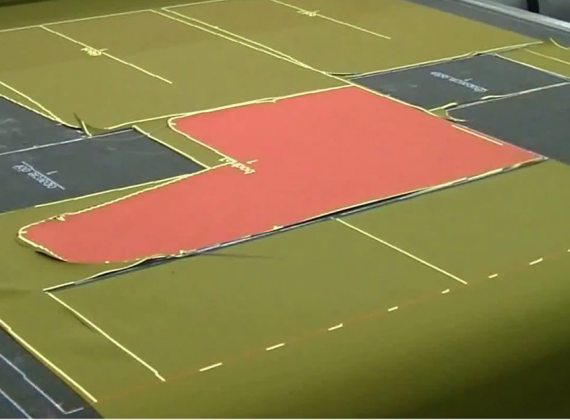

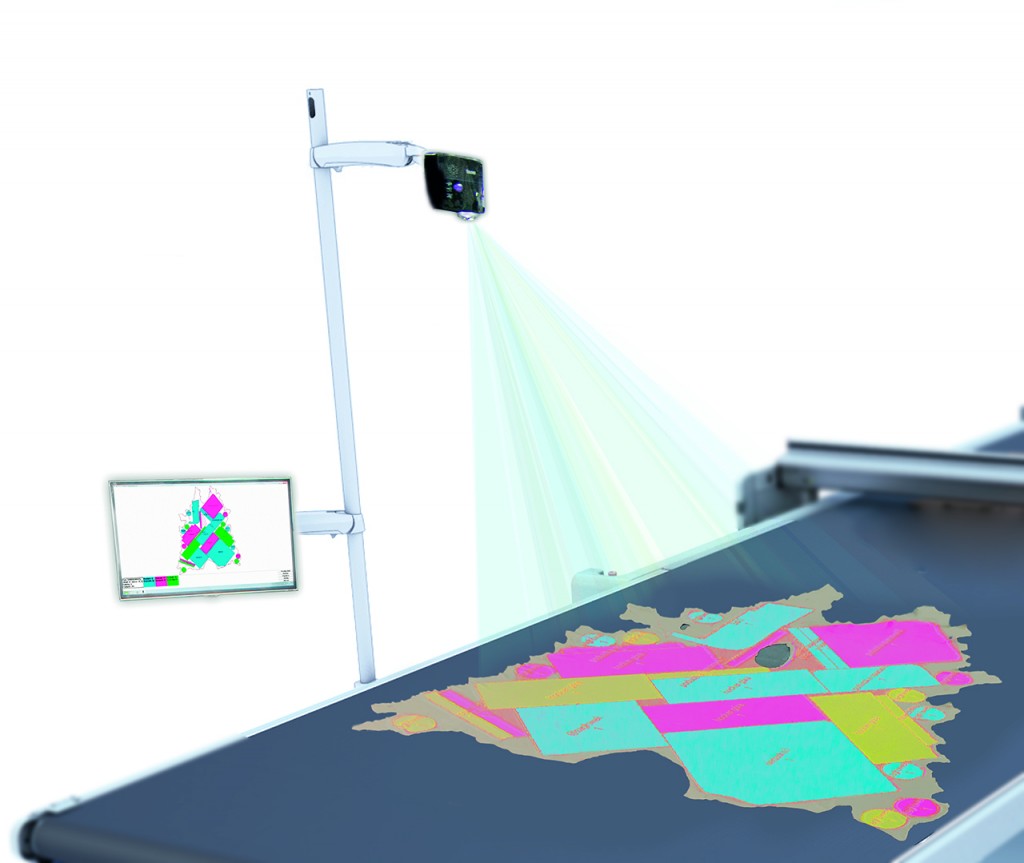

Some materials, such as leather or textile material with a pattern, is necessary to see while nesting pieces. For that purpose is possible to use interactive nesting with projection, where operator places the pieces, respecting the quality and character of material, in place where the actual position of the piece is projected. The Projection module is installed and calibrated directly on a CNC-cutter. It is possible to set colors of projected objects or switch between various color schemes to reach the best projection on dark and light material. The Plugin Projection can be also used together with Plugin Sorting Manager for effective sorting of cut pieces.
Benefits:
- Interactive nesting on prefered part of material
- Effective collection of cut pieces
